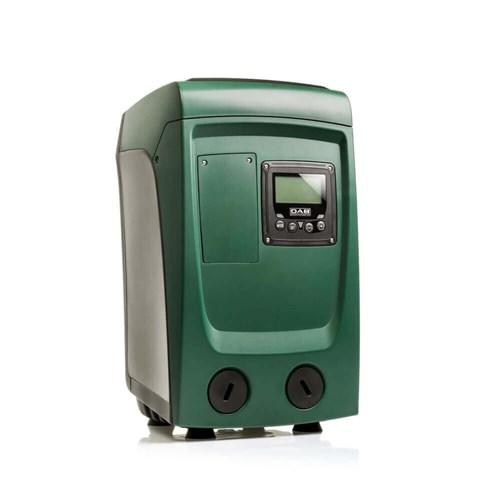

DAB-ESYBOX MINI3 – PUMP VARIABLE SPEED PRESSURE SYSTEM80L/MIN 50M 0.85KW 240V

Pumps – DAB-ESYBOX MINI3 – PUMP VARIABLE SPEED PRESSURE SYSTEM80L/MIN 50M 0.85KW 240V

Product Type Pressure System
Brand DAB Pumps
Suitable For Clean Water
Bar 5 Bar
Approval Approved For Drinking Water
Flow Range Category b. 100 – 199 L/min
Flow Rate (L/min) 80 L/min
Hp 1.1 Hp
kPa 500 kPa
Kilo Watts 0.85 kW
Head (max) 50 m
Port Size Inlet 1″ BSPF inlet
Port Size Outlet 1″ BSPF outlet
Powered Electric
Taps 8 Taps
Volts 240 V
Warranty (months) 48 Months
Watts 850 W
Category:

Description

0.85kW, 1.1hp, 240V, max hd 55m, max flow 80L/m, 8 taps. Ports 1”BSPF In, 1” BSPF Out

Features
E.SYBOX MINI3 is the DAB compact automatic pressurisation system for the water supply of a single dwelling. E.SYBOX MINI3 guarantees the comfort of constant pressure (Pressure Set Point adjustable from 1 up to 5,5 bar) inside the system, and energy savings thanks to the inverter technology. Suitable for use with drinking water, in domestic systems, and in gardening applications.

E.SYBOX MINI3 is an integrated system for water pressure boosting in domestic and residential applications. Consists of self-priming multistage pump, electronics for control and management, pressure and flowsensors, a high-resolution LCD orientable display and integrated expansion vessel of 1 litre.

E.SYBOX MINI3 does not require any additional components for its installation

Constructional Features
It consists of a self-priming multistage pump, management inverter electronics, pressure and flow sensors, adjustable high resolution LCD display with 1 litre built-in expansion vessel, and cartridge check valve. The double suction and delivery ports allow both vertical and horizontal installation.

Thanks to its compact sizes, installation is also possible in difficult places without high air exchange. The E.SYWALL wall bracket allows wall installation, saving even more room.

E.SYBOX MINI3 is a self-priming pump with a capability of 8 metres in less than 5 minutes. The water cooled motor, the anti-vibration feet and the electronics, make this product totally comfortable and compact. Fitted with all the safety protections, as well as the protections for the safeguard of the pump. Particularly, the dry run, and the antifreeze protections.

All the parameters and the operating status can be displayed and set on the high resolution LCD display

Special Features:

Energy efficient
It can be installed in vertical or horizontal position, in a ventilated room or in a recess
Quiet operation
Saves 30% of space in comparison with the DAB Esybox
Easy maintenance
4 Year Parts & Labour Warranty
