Description

Pack Weight 8.50kg

Description: 0.45kW, 0.6hp, 240V, max hd 38m, max flow 50L/m, 4 taps. Ports 1” BSPF in, 1” BSPM Out, 2.2 bar controller.

Features:

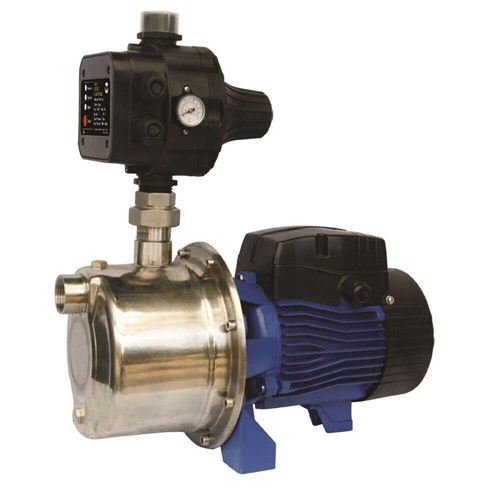

The pump is a self-priming surface mounted pressure system pump supplied with plug and play leads (IEC type). The self-priming ability provides excellent suction capacity of up to 9m. Used especially for supplying water to domestic installations.

The pump is characterised by:

• Automatic electronic pump control fitted and wired with plug and play leads so a licensed electrician is not required during installation.
• Includes fully electronic pump controller for automatic pump starting, stopping and restart after power loss and water loss.
• Run dry protection to prevent pump damage
• Automatic electronic control has in-built check valve to prevent water backflow through the pump.
• 2.2bar pump cut in for greater versatility.
• Corrosion resistant pump body, diffuser and impeller to ensure pump durability
• High quality mechanical shaft seal and high quality bearings
• 240V single phase TEFC motor with in-built auto reset thermal overload to prevent the pump from overheating.

Applications

• Used especially for supplying water to domestic installations and applications where a suction lift is required.

Package Information

• 11 kg
• L 420mm x W 230mm x H 460mm
